Fluon® LM-ETFE AH Series
Fluon® LM-ETFE AH series products are fluorinated resins with adhesive properties, making it possible to adhere to other materials by melting.
It can be applied directly without an adhesive agent or surface treatment as required by previous systems. Excellent adhesiveness of the two-layer system is efficiently achieved in only one step.
Fluon® LM-ETFE AH Series Functions and Features
Bonding ability
LM-ETFE AH series enable melt-bonding to other materials without special adhesives or surface treatments while maintaining LM-ETFE properties.
Processibility
Melting point is as low as 225°C. It has lower viscosity over 240°C, so processing is possible at temperature 50°C lower than conventional ETFE.
Excellent heat resistance
It has a higher heat resistance than the ETFE resin, so it is usable over a wide temperature range from -200°C to 180°C. Continuous usage at 180°C is also possible. It also maintains stable electrical properties.
Fluon® LM-ETFE AH Series Usage
Desired properties such as anti stick, ETFE moldability and chemical resistance are the same as those of conventional ETFE.
Fluon® LM-ETFE AH Series Usage
The following is an introduction of the major uses of the Fluon® LM-ETFE AH Series.

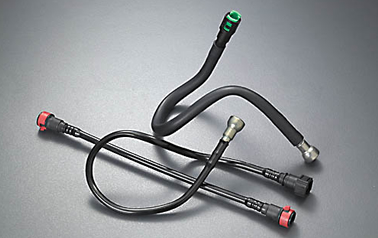

Laminated tubes with other plastic

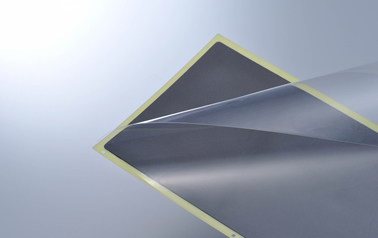

Laminated films with other plastic
Grade List
| Physical | Method | Units | Standard type | Compound Grade | ||
|---|---|---|---|---|---|---|
| AH-2000 | AH-5000 | AH-3000 | AH-3000L | |||
| MFR | ASTM D3159 (297°C, 49 N) | g/10 min | 25 | 25 | 25 | 6.5 |
| Specific Gravity | ASTM D792 | - | 1.78 | 1.78 | 1.8 | 1.77 |
| Melting Point | DSC | °C | 240 | 225 | 240 | 240 |
| Tensile Strength at break | ASTM D638 | Mpa | 49 | 35 | 38 | |
| Tensile Elongation at break | ASTM D638 | % | 420 | 350 | 400 | |
| Flexural Modulus | ASTM D790 | Mpa | 790 | 1240 | 1240 | |
| Izod Impact Strength, 23°C | ASTM D259 | J/m | Non-Break | Non-Break | Non-Break | Non-Break |
| Permeation rate (CE10, 60°C) | JIS Z0208 (CUP) | g×mm/m2×24 h | 2.6 | 2.0 | 2.0 | |
| Surface Resistivity | AGC | Ω/□ | - | - | 1.0 E+03 | 2.0 E+03 |
| Surface Contact Angle | Hanging drop method | degrees | 100 | 106 | 105 | |
Information about this Product
Inquiries about this Product
We also accept requests for samples, and consultations regarding introduction and verification support.
