Fluon® LM-ETFE
Fluon® LM-ETFE is a thermoplastic fluoropolymer with a lower melting point.
Fluon® LM-ETFE Functions and Features
Processibility
Melting point is as low as 225°C. It has lower viscosity over 240°C, so processing is possible at temperature 50°C lower than conventional ETFE.
Excellent heat resistance
It has a higher heat resistance than standard ETFE resin, so it is usable over a wide temperature range from -200°C to 180°C. Continuous usage at 180°C is also possible. It also maintains stable electrical properties.
Excellent chemical resistance
It has excellent resistance to almost all chemical agents and solvents.
Fluon® LM-ETFE Usage
The characteristics of Fluon® LM-ETFE provide the superior solution, in terms of cost reduction compared to the use of other fluoropolymers, or improved performance if replacing conventional materials.
Fluon® LM-ETFE Usage
The following is an introduction of the major uses of Fluon® LM-ETFE.

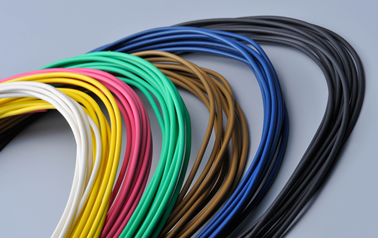

Wire and cable
Due to its excellent electrical and insulating properties in a wide range of temperatures, and superior mechanical strength, especially flex life, Fluon® LM-ETFE is suitable for wire and cable coatings.
Tubing
Tubing made from Fluon® LM-ETFE is suitable for the transportation of high viscosity liquid, due to its non-adhesiveness and smoothness of internal molded surfaces.

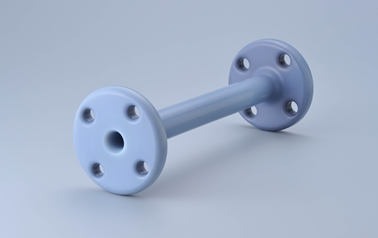

Linings and coatings
Fluon® LM-ETFE, when used as an inner layer lining or coating, is stable against most chemicals (acids, alkali, solvent, etc.) and remains effective when subjected to an increase or decrease in temperature or pressure.
Grade List
■ Pellet
| Grade | Melt Flow Rate* | Characteristics | Molding Methods and Applications |
|---|---|---|---|
| LM-720AP | 10 -20 | Low melting point, flexibility, transparency | Extrusion molding, tube molding, injection molding, electric wire coatings |
| LM-730AP | 20 - 30 | Low melting point, flexibility, transparency | Extrusion molding, tube molding, injection molding, electric wire coatings |
| LM-740AP | 30 - 40 | Low melting point, flexibility, transparency | Extrusion molding, tube molding, injection molding, electric wire coatings |
| HR-930 | 20 - 35 | High fluidity, resistant to stress cracking | Thin electric wires, thin-walled injection |
| CB-4015L | 2 - 8 | Conductivity, carbon 15% | Extrusion molding, fuel tubes |
Melt flow rate*: Compliant with ASTM D3159
■ Powder
| Grade | Mean particle size | Thickness μm | Molding Method | Characteristics |
|---|---|---|---|---|
| LM-2300N | 300 - 500 μm | more than 2000 μm | Rotational molding | For top layers (smooth inner surfaces), low melting point type |
| LM-2150 | 30 -70 μm | ～ 500 μm | Electrostatic powder coating | For top layers (smooth inner surfaces), low melting point type |
Information about this Product
Inquiries about this Product
We also accept requests for samples, and consultations regarding introduction and verification support.
