Fluon® PTFE CD
Fluon® PTFE CD coagulated dispersion powders (fine powders) are
used for paste extrusion to make tapes, stretched films,
filters, tubes, rods and wire coating. Since it undergoes the formation of fibers easily when shear forces are applied, it can be used as a flame resistant additive to improve the melt tension of thermoplastic resins by adding it to them in trace amounts.
Fluon® PTFE CD Usage
Fluon® PTFE CD Usage
The following are examples of uses for the CD grade (fine powder).

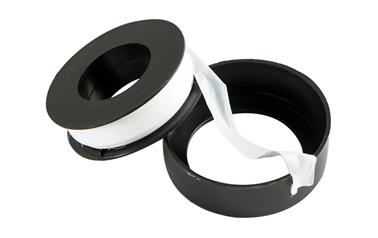

Sealing tape, small-diameter rods

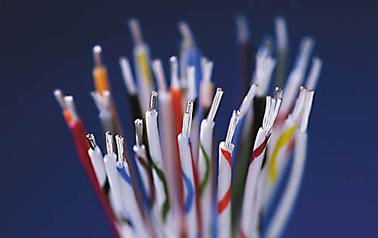

Thin-walled tubes, electrical wire coatings
Improvement of melt tension for thermoplastics
Fluon® CD PTFE fibrillates easily by shearing. Fluon® CD PTFE has this fibrillation characteristic which can improve the melt-tension of thermoplastics.
Grade List
| Properties | Bulk Density | Median Particle Size | Specific Gravity | Relative Extrusion Pressure | Tensile Strength | Elongation | Reduction Ratio (RR) | Transparency | Applications | Characteristics |
|---|---|---|---|---|---|---|---|---|---|---|
| Test Methods | JIS K6891 | ASTM D4895 | JIS K6892 | - | ASTM D4895 | ASTM D4895 | - | |||
| CD145E | 510 | 550 | 2.17 | 1.9 | 39 | 430 | 50 - 500 | - | Low-density tape | Low RR |
| CD123E | 550 | 500 | 2.16 | 2.3 | 41 | 420 | 25 - 300 | - | electrical tape wire coating, pipe, hose | High-strength product, low RR |
| CD126E | 460 | 500 | 2.18 | 2.3 | 33 | 440 | 15 - 300 | - | Stretched film, flat cables | Low RR |
| CD097E | 500 | 550 | 2.18 | 0.9 | 35 | 500 | 250 - 4000 | Best | Fine tubes, wire coatings | High RR, outstanding transparency |
Information about this Product
Inquiries about this Product
We also accept requests for samples, and consultations regarding introduction and verification support.
