[Gas] AMOLEATM 1224yd <General Name > Fluorinated gas
Product summary

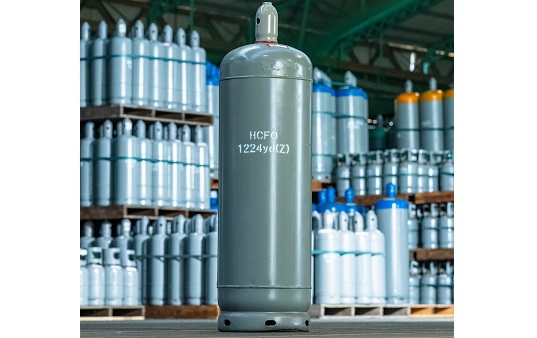

AMOLEATM 1224yd is a non-flammable refrigerant that consists of HFO-1224yd(Z), designed for use in centrifugal chillers, binary cycle generators and waste heat recovery heat pumps, blowing agent, aerosol solvent, and cleaning solvent. With Ozone Depleting Potential (ODP) of almost zero and a GWP value under 1, AMOLEATM has little impact on the natural environment.

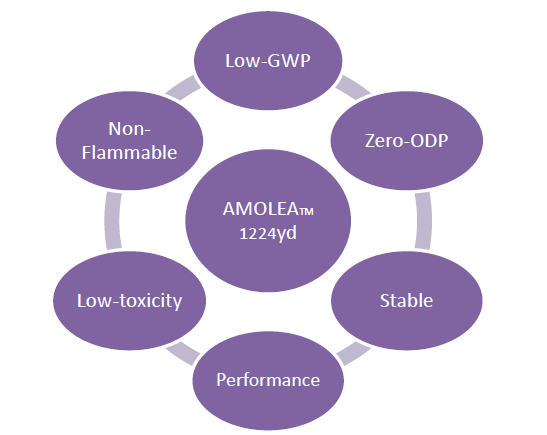

Features
- GWP Under 1*1
- Zero-ODP (0.00023 as CFC-11=1*1)
- Same thermal stability as HFCs, more stable than other HFOs
- Good compatibility with most oils, metals, plastics and elastomers
- Properties are similar to or better than HFC-245fa, especially in refrigeration performance
- LC50 >213,100ppm、AEL=1,000ppm、RCL=60,000ppm
- Non-flammable
*1 Tokuhashi K. et al., J. Phys. Chem. A, (2018) 122, 3120-3127
Applications
- Refrigerant for Centrifugal Chiller
- Refrigerant for Binary cycle
- Refrigerant for High-temperature heat pumps
- Blowing agent
- Aerosol solvent
- Cleaning solvent
Properties
AMOLEATM 1224yd (HFO-1224yd(Z))
| AMOLEATM 1224yd (HFO-1224yd(Z)) | |
|---|---|
| Chemical name | (Z)-1-Chloro-2,3,3,3-Tetrafluoropropane |
| Molecular formula | (Z)-CF3-CF=CHCl |
| Molecular weight | 148.5 g/mol |
| Normal boiling point (101.3kPa) | 15 °C |
| Critical temperature | 156 °C |
| Critical pressure | 3.34 MPa |
| Critical density | 527 kg/m*2 |
| LC50 | 213,000 ppm |
| Atmospheric life time | 20days*2 |
| ODP | 0.00023*2 |
| GWP(rev IPPC AR5) | 0.88*2 |
| Flammable range | None |
*2 Tokuhashi K. et al., J. Phys. Chem. A, (2018) 122, 3120-3127
Technical information

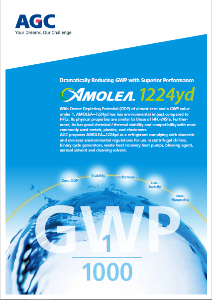

Leaflet (AMOLEATM 1224yd)

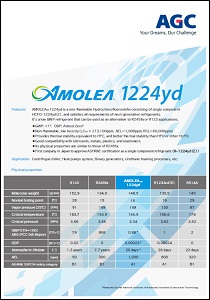

Leaflet for refrigerant (AMOLEATM 1224yd)
Leaflet for blowing agent (AMOLEATM 1224yd)

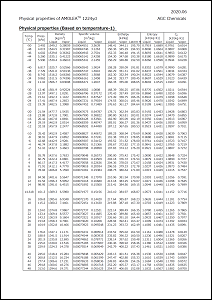

Physical properties (AMOLEATM 1224yd)

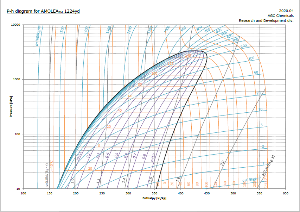

P-h diagram (AMOLEATM 1224yd)
Refrigerant Properties Useful Software (ARPUS)
ARPUS is a software for calculating temperature and pressure of AGC fluorocarbon products. It is possible to calculate temperature and pressure which is required for developing and installing air conditioning equipment, such as saturation temperature to saturation pressure, saturation pressure to saturation temperature, and to calculate superheating and subcooling. Please check the disclaimer before use.
This software can be used on both PCs and smartphones. Internet access is required.
Precautions on use
- Please carefully read the AMOLEATM 1224yd series Safety Data Sheet (SDS) in advance of use and handle it accordingly.
